Note: Full Trends are included in Meters and are not separate objects.

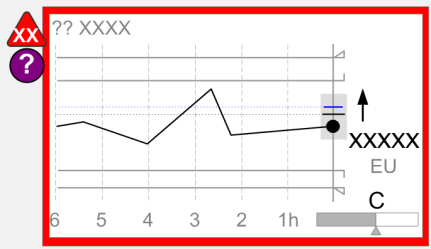

This trend object provides basic trending capability for any instrument. This can be created by setting the Trend Type option to Full on any meter composite. The alarm limits are projected leftward onto the trend to provide reference lines for the PV. The tracker is also displayed as a time-varying value.
Note: The High and High High alarm limit indicators are ‘flipped’, so that the flags are shown on the right hand side of the meter.
