Configure Server Paths
You can configure the file server locations that the Process Analyst uses to load and save Process Analyst views, and displays the current Citect SCADA run path if the Process Analyst is embedded in a running Citect SCADA system. This command is disabled at run time if you do not have the appropriate privilege. For details about saving and loading views, see Working with Views and Process Analyst View Synchronization.
The Process Analyst uses four possible storage locations:
- User - maps to the client machine's logged-in user's My Documents folder. This option is available for any possible privilege and Citect SCADA mode.
- Primary - User-definable.
- Secondary - User-definable.
- Local - displays the current Citect SCADA run path (read-only). This text box only gets populated when the Process Analyst is running in Citect SCADA V6.0 or higher. This path is an Analyst Views subdirectory under the Citect SCADA current Run directory.
To configure server paths:

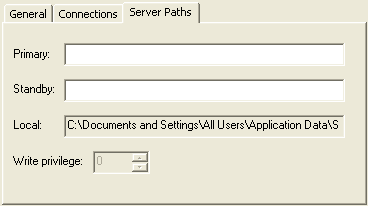

- Click the Server Paths tab on the Main page.
- Enter the location of the Primary file server.
- Enter the location of the Standby file server (optional). This specifies the file server to use if the primary file server is unavailable.
- Click Apply.
