Configure Pen Gridlines

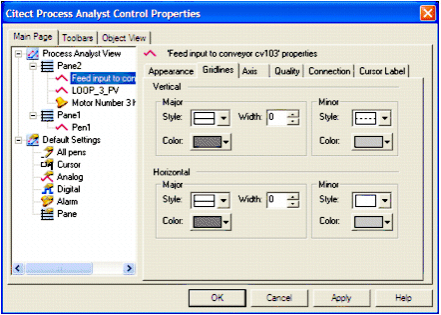

You use the Process Analyst Properties dialog box to configure the gridlines for a selected pen. Pen gridlines can be configured at run time by Operators, and at design time by Users.

For more information about pen gridlines, see the Chart View.

Note: To configure defaults for pen gridlines, select the All pens item in the property tree under Default Settings, and then complete the procedure below.

To configure pen gridlines:

  1. Click the Main Page tab.
  2. From the property tree list, select the pen you want to configure gridlines for.
  3. Click the Gridlines tab to display the gridlines property controls.

  4. In the Vertical: Major area, select a Style, specify a Width, and then select a Color.
  5. In the Vertical: Minor area, select a Style, specify a Width, and then select a Color.
  6. In the Horizontal area (analog pens only), select a Style for the minor gridline, specify a Width, and then select a Color for the major gridline.
  7. Do the same if necessary for the minor gridline.
  8. Click Apply.
