Print an Alarms List

If your project uses the StruxureWare or Tab Style templates (accessible via a starter project), you can print the list of alarms that is displayed on the following pages:

To print an alarms list:

  1. In a project based on the StruxureWare templates, select Print/Export on the page Command Bar.
  2. Or:

    In a project based on the Tab Style templates, go to the Action tab and select Print/Export. If the Action tab is not available, you can select Print/Export on the Page Tasks panel.

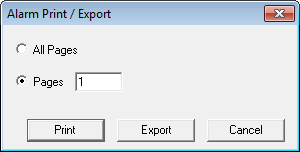

    The Alarm Print/Export dialog will appear.

  3. Select All Pages to print the entire alarms list, or Pages to specify a subset of pages.
  4. Click on the Print button to make the Print dialog appear.
