View Computers

In the Topology activity, select Computers. Click By Computer to view your SCADA system's topology organized by the computers in the system. This view is used by default to display the topology of the selected project.

Note: To access information describing the By Cluster view, see the topic View Clusters.

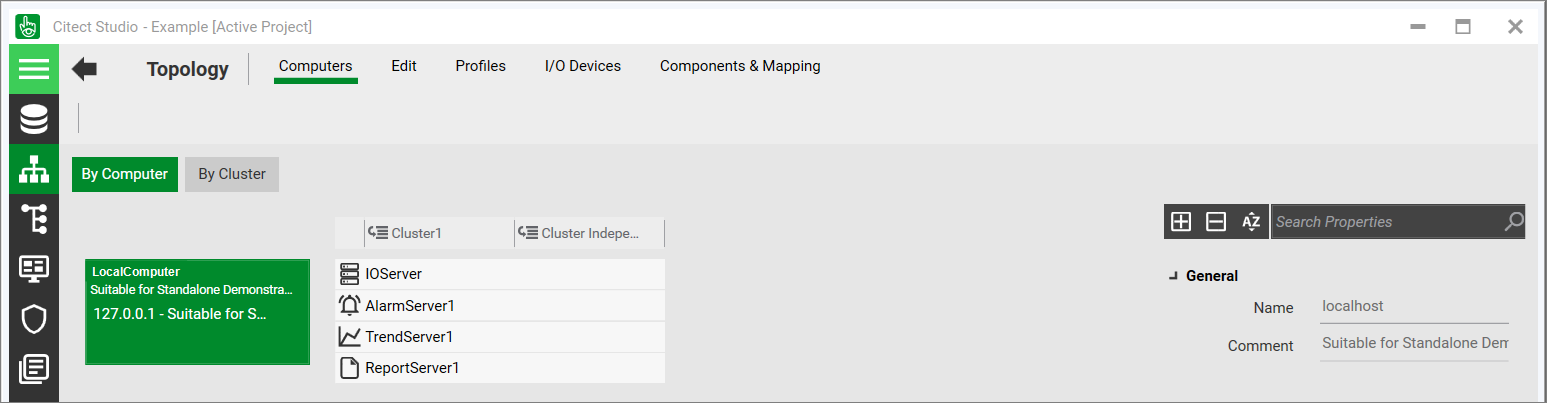

In this view, computers configured in the selected project are listed with a description of each machine's clusters and the servers allocated to each cluster. The selected machine card is displayed in green as shown below.

Within the machine card, the following information is displayed:

• Machine Name, displayed in upper case letters
• IP Address(es) of the machine
• whether server is primary or standby

The Property Grid on the right displays the following information for the selected machine:

• Machine name
• Machine description
• Network Address - IP address(es) of the computer
• ModeNumber
• Computer
