To draw a pipe:

1. Click the Pipe tool.



2. Move the cursor to where you want the pipe to start, and click and hold the mouse button.
3. At the end of the first line segment, release the mouse button.
4. Move the cursor to each point on the path in turn and click the mouse button (clicking and dragging is not necessary after the first segment).
5. To complete the pipe, double-click the mouse button.

When you complete the pipe, the object properties dialog is displayed.

Hint: To draw horizontally or vertically only, hold the Ctrl key down when drawing the pipe.

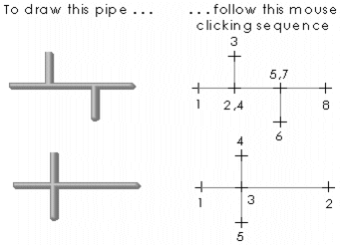

Use the Pipe tool to draw complex pipe arrangements (including 'T' pieces and junctions). The illustration below shows some pipes, and the sequence of mouse clicks needed to draw each of them:

Pipes have the following general appearance properties.

Property	Description
[Line] Width	The width of the pipe (in pixels). You can change the width by clicking the up and down arrows to the right of the field, or by entering another value in this field. Every pipe needs to be at least 1 pixel wide.
[Line] Highlight Color	The color of the pipe where it is "in the light"; that is, the brightest color on the pipe.
[Line] Lowlight Color	The color of the pipe where it is "in shadow"; that is, the dullest color on the pipe.

For help on the remaining properties tabs, see Define Common Object Properties.
