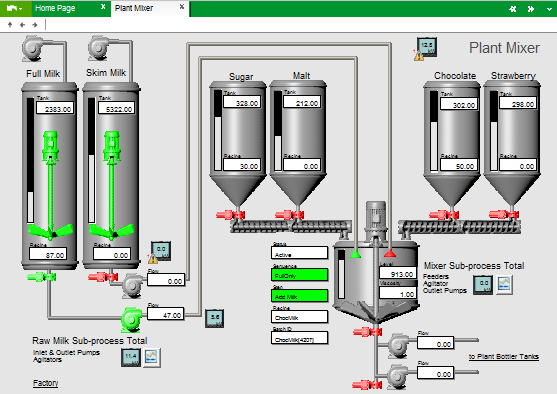

Graphics pages create the visual interface an operator uses to monitor and control a runtime system. Graphics pages are typically designed to reflect a particular area or process within a facility. For example, the image below shows a graphics page that represents a plant mixer. (This page is available to view in the Citect SCADA Example project.)
You can also use graphics pages to create popup pages that represent equipment face plates.
Citect Studio presents a list of pages included in a project in the Visualization activity ( see View Page Properties in Citect Studio).
However, to configure graphics pages, you need to use Graphics Builder. This is the tool required to create a page, and add the content that makes it reflect the area or process it will be used to monitor.
