Activity Bar

Citect SCADA Citect Studio > Activity Bar

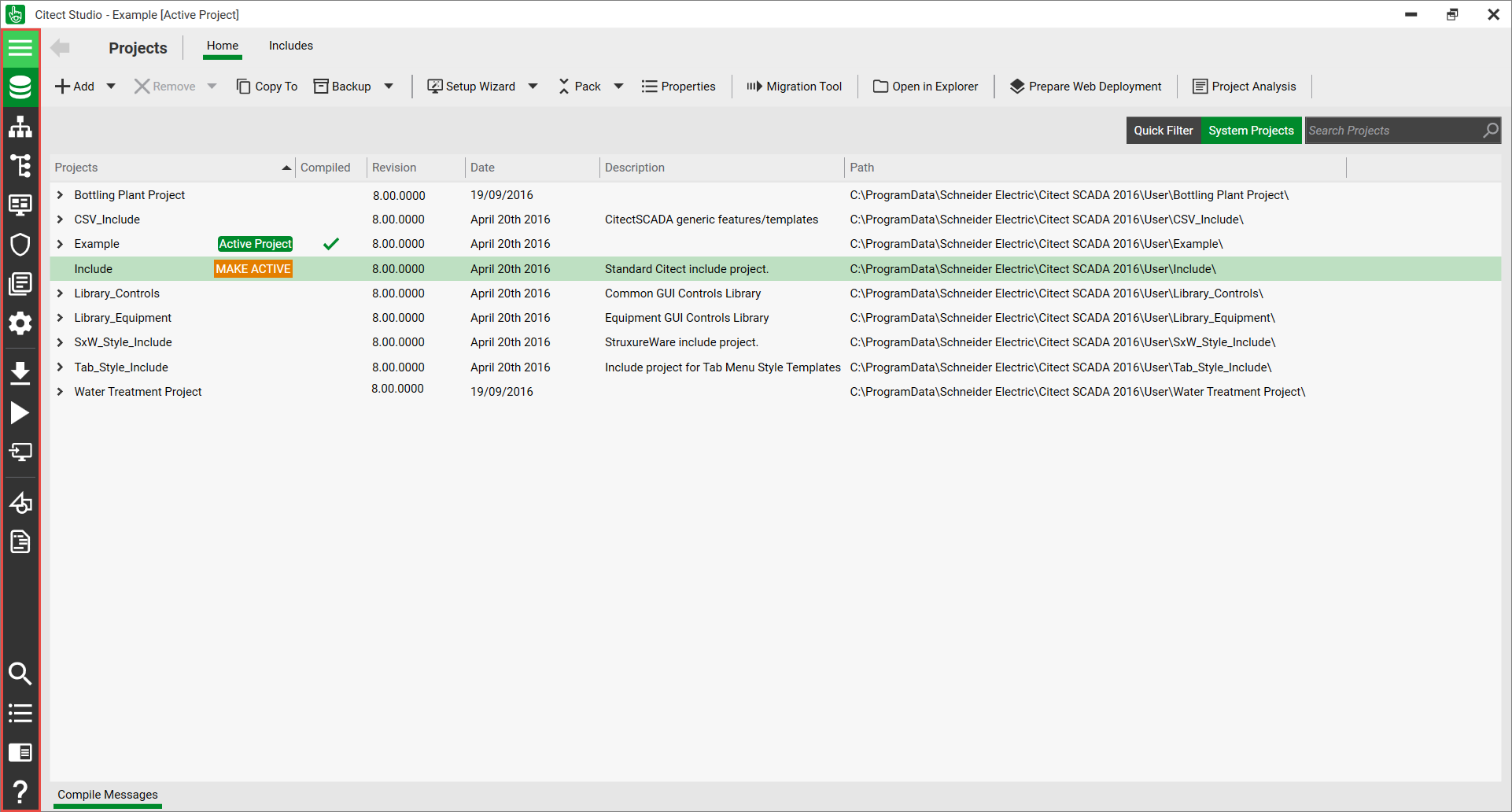

The Activity Bar is located on the left hand side. It displays a set of icons that provide access to various project engineering activities such as Projects, Topology, Security, and so on.

For example, clicking displays the Project activity. Each icon displays a tooltip for easy identification.

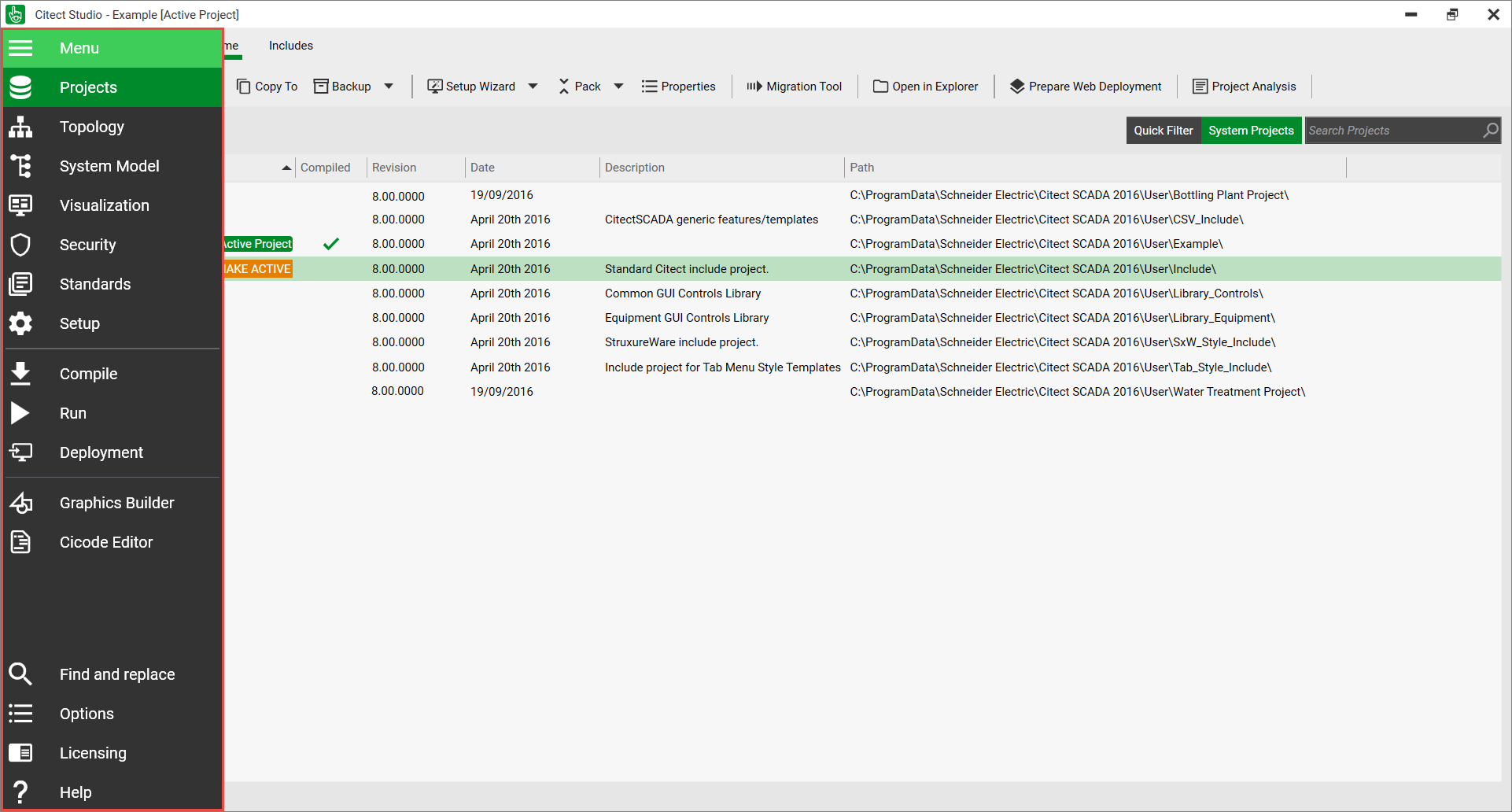

Click to access the menu, which shows Activity Bar icons along with a description.

The Activity Bar is always visible. Selecting an option in the Activity Bar displays the corresponding activity and Activity Menu. It also allows the following tasks to be performed:

run, compile and deploy the current project
switch to an editor, for example, the Graphics Builder or Cicode Editor
set options for Citect SCADA
access the online help
