Select this radio button to fill the object/group with one color when a particular expression is TRUE, and another when it is FALSE. For example, you could fill an object/group with red when a particular variable tag is in alarm, and green when it is not.

This option is useful when you have several possible conditions, occurring together in different combinations, at different times. Select this option to fill the object/group with a different color for each combination.

For example, three digital variable tags (A,B, and C) can each be ON or OFF at any time. You can fill the object/group with a different color for each ON/OFF combination. In other words, you could use a different fill color for each of the following ON/OFF combinations ABC, ABC, ABC, ABC, ABC, ABC, ABC, ABC.

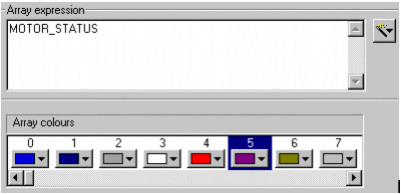

The Array option allows you to enter an expression which returns an integer. For each unique integer (from 0 to 255), you can fill the object/group with a different color. For example, you could use a different fill color for each threshold of an analog alarm.

Select this radio button to dynamically change the fill color when an expression reaches a specific value (threshold). For example, you might decide that the fill color will change to red when the speed of a motor is greater than or equal to 4500 rpm, and to white when less than or equal to 100 rpm, but remains gray for every speed in between.

Select this radio button to dynamically graduate the fill color, displaying a different color for each unique value returned by a particular expression. This option allows you to select two colors, to be used as the color limits. The color for each value returned is automatically selected from within the range defined by these limits. The result is a fade from one color to another.

Enter the expression which is to return an integer. For each value returned, a different color will fill the object/group.

If the return value is:

• Less than 0 (zero), it will be set to 0 (zero), and a runtime hardware alarm will be triggered.
• Greater than 255, it will be set to 255, and a runtime hardware alarm will be triggered.
• A real (non-integer) number, it will be truncated (for example 8.1 and 8.7 would both be truncated to 8).

To insert a tag or a function, click the Wizard button to the right of this field. This button displays two options: Insert Tag and Insert Function.

Note:You can also insert Equipment.item references into expression fields using the insert tag option; however if no equipment has been configured in your system the list will be empty. You will need to configure equipment to populate the list with available tags.
