Customize Grid Editor Columns

The Grid Editor displays a default selection of columns in the grid. However, this selection can be customized to suit your requirements.

To customize this display:

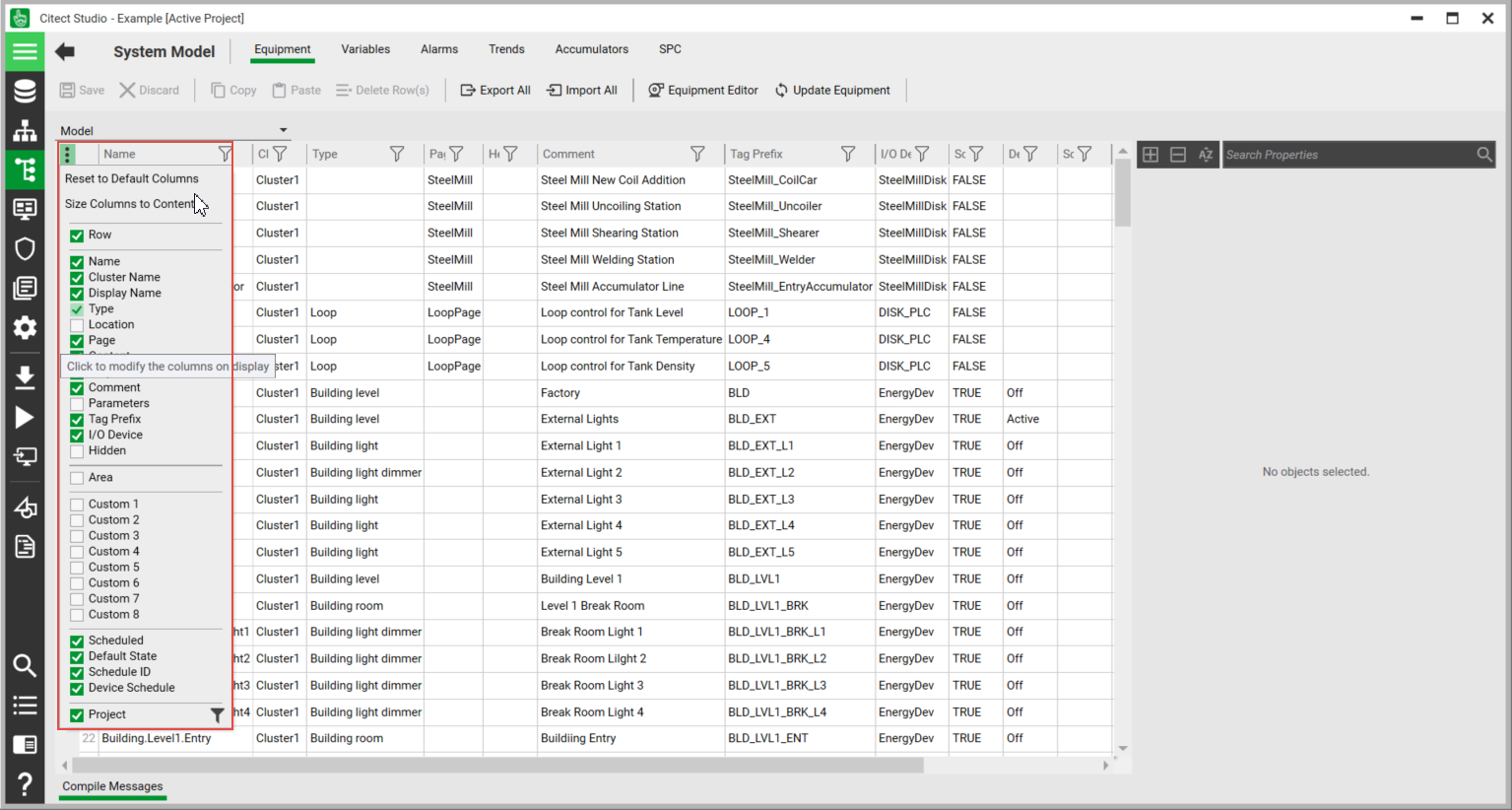

1. Click displayed on the top left-hand side of the Grid Editor. A list of available columns is displayed.

2. To select a column for display, select the check box next to the column name. To hide a column, clear the check box next to column name. Repeat this step until you have chosen the required columns. Columns are displayed or hidden as soon as you select or clear the selection of a check box.

Note: To hide row numbers, clear the check box next to the column name "Row".

3. Click to hide the list of available columns. To return to the default display, select Reset to Default Columns. Selecting this option will remove any filters applied to the grid.

To re-size columns according to their content, click and select Size Columns to Content.

To change the order in which the columns are displayed in the Grid Editor, click the column header, hold the left-mouse button down and drag the column to the desired location. Release the left-mouse button.

Note: The "Row" column cannot be moved.

See Also

Published June 2018
