The <Parameter> element defines the attributes that will be displayed as Presentation Options to the user when they insert a Composite Genie on to a graphics page. It is comprised of the following attributes for each parameter:
Attribute |
Description |
---|---|
Name |
Unique name for the parameter. |
Label |
Display name for the parameter. |
Type |
Data type of the parameter – Boolean, Integer or String. |
MinLength |
Minimum number of characters that the parameter value needs to contain. |
MaxLength |
Maximum allowable characters for the parameter value |
MinValue |
Minimum value that can be specified for the parameter |
MaxValue |
Maximum allowable value for the parameter |
DefaultValue |
Default value set for the parameter |
NamingRules |
Naming rules can be used to force the user to enter parameter values in a particular format. For example, to use equipment naming rules, set this attribute to “Equipment”. Refer to the Equipment Naming Rules and Tag Naming Rules sections for more information. |
Description |
Description of the parameter. This appears at the bottom of the Parameter Options dialog box when the operator clicks to specify the value for a parameter. It is recommended that you enter a description for the parameter in order to help engineers to specify valid values for the parameters. |
Values |

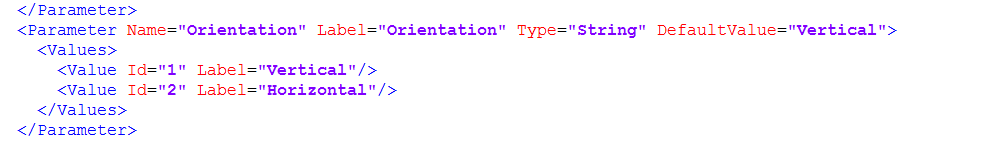

List of selectable values if an option is to be displayed as a dropdown list in the Parameter Options dialog box. To create a list of values, each value needs to be declared with a unique ID and Label. The label will appear as one of the values the user can select. For example, if you need an option titled “Orientation” with the values “Vertical” and “Horizontal” available for selection, the following code needs to be included in the Parameters element:
|
Parameter definitions can include the <Dependency> element to show or hide parameters. This element can use Global, Parameter or Composite conditions to show or hide a parameter based on the operator's selection of an option or value. For more information about conditions, refer to Conditions.

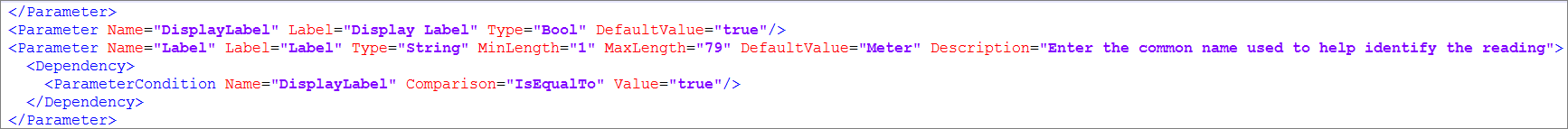

This is a simple example where a dependency has been defined using the <Dependency> element to show the Label parameter only if the operator selects the Display Label checkbox. This is achieved through the use of a Global Condition. You can also use Parameter and/or Composite conditions within the <Dependency> element.

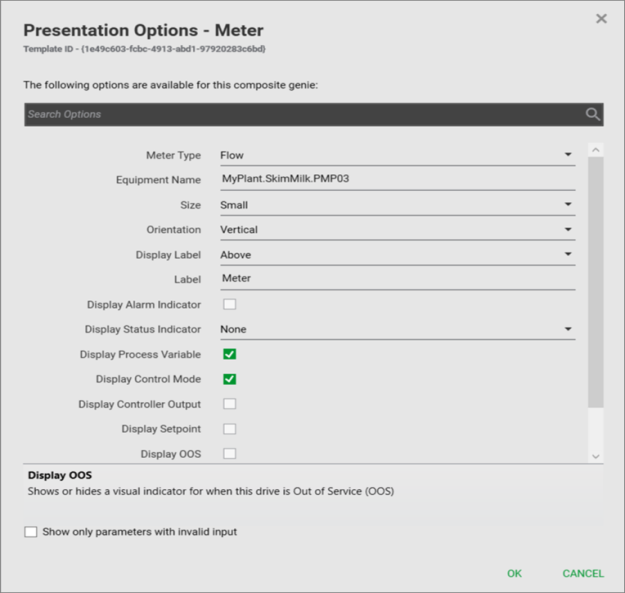

The above code will display the following presentation options.

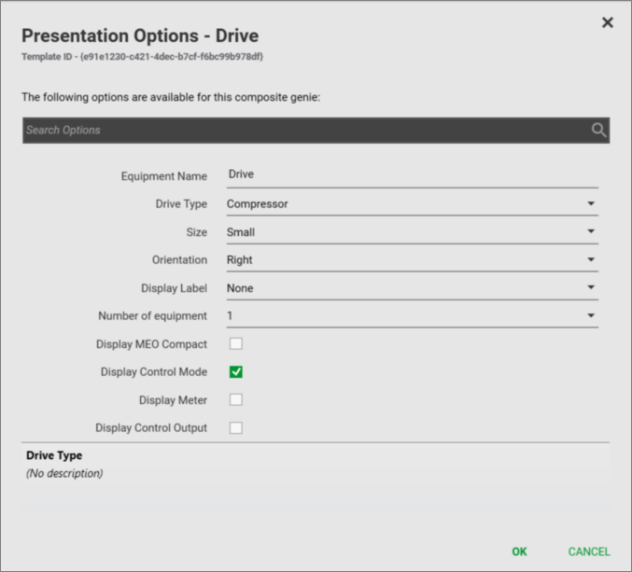

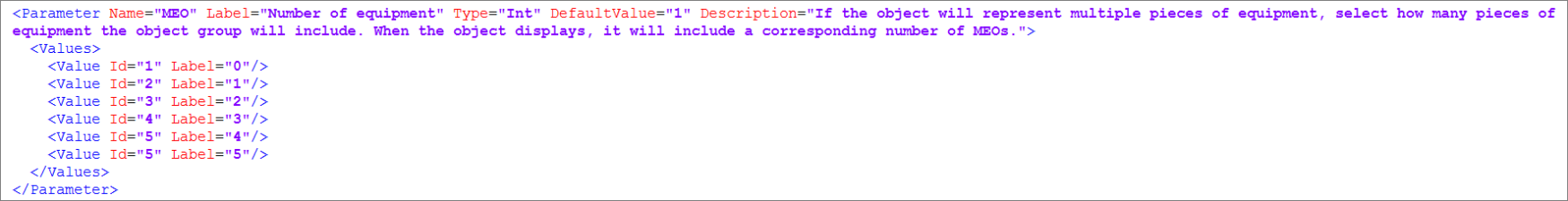

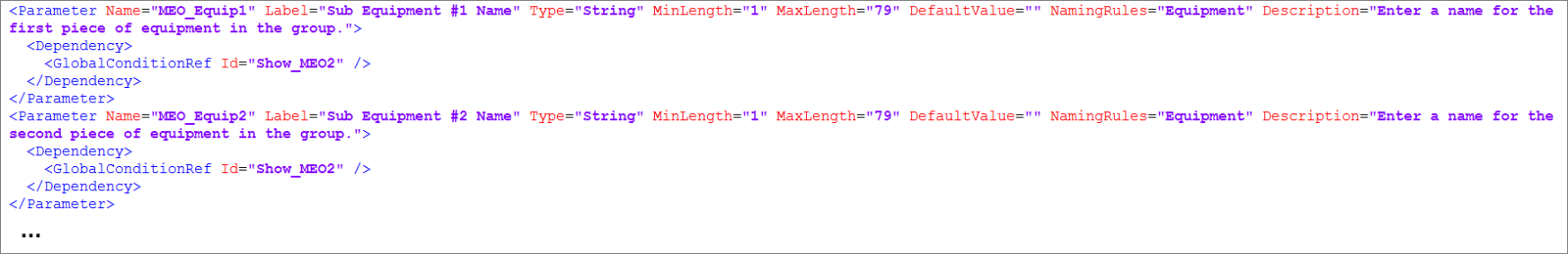

This example provides a slightly more complex scenario with parameters to be displayed based on the operator’s selection of value. Therefore, a list of values and a dependency need to be defined.
